Steel Band Winding Equipment Manufacturers
Three Water Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of steel band winding equipment manufacturers in China. We warmly welcome you to buy high-grade machinery for sale here from our factory. If you have any enquiry about quotation, please feel free to email us.
Product Introduction
Three Water Machinery Co., Ltd. is a leading and highly experienced manufacturer and supplier of steel strip winding equipment across China. We sincerely welcome customers worldwide to purchase premium-quality machinery directly from our factory. For any inquiries or customized quotation requests, please feel free to contact us via email at your convenience.
Main Technical Parameters

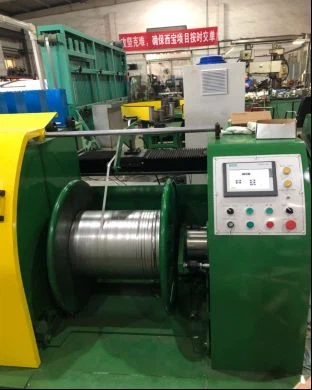

1 set of steel strip winding machine, designed to rewind commercially finished steel strips onto bobbins.
The complete unit comprises two core sections: the upper part is the strip pay-off device, and the lower part is the main winding machine.
Maximum winding speed: ≤ 200 m/min
Steel strip dimension: Customized per customer requirements
Winding bobbin size: Φ800×Φ600×400 mm (outer diameter × inner diameter × width), customizable
Total power: 15 kW
Maximum winding load: ≤ 800 kg (custom design available for special working conditions)

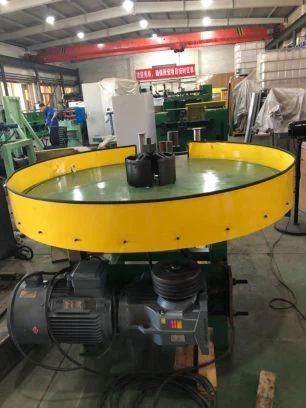

Pay-off type: Single disc pay-off
Pay-off control: Uncontrolled passive drag damping pay-off system
Power supply: Configured as customer required
Driving mode: Inverter stepless speed regulation; equipped with mechanical damping adjustment and pneumatic brake at the inlet for stable pay-off
Control system: Integrated electric control unit, fitted with strip breakage emergency stop device and metering module with electric parameter display
Take-up configuration: Pneumatic lifting structure for bobbin loading and unloading
Overall machine dimension: 1.25 m (L) × 0.98 m (H) × 1.28 m (W)
Required working area: 8.4 m (L) × 2.2 m (W)
