Steel Band Winding Equipment

Strip winding machine 1 set (applied for finished strip from market and then wound on bobbin)

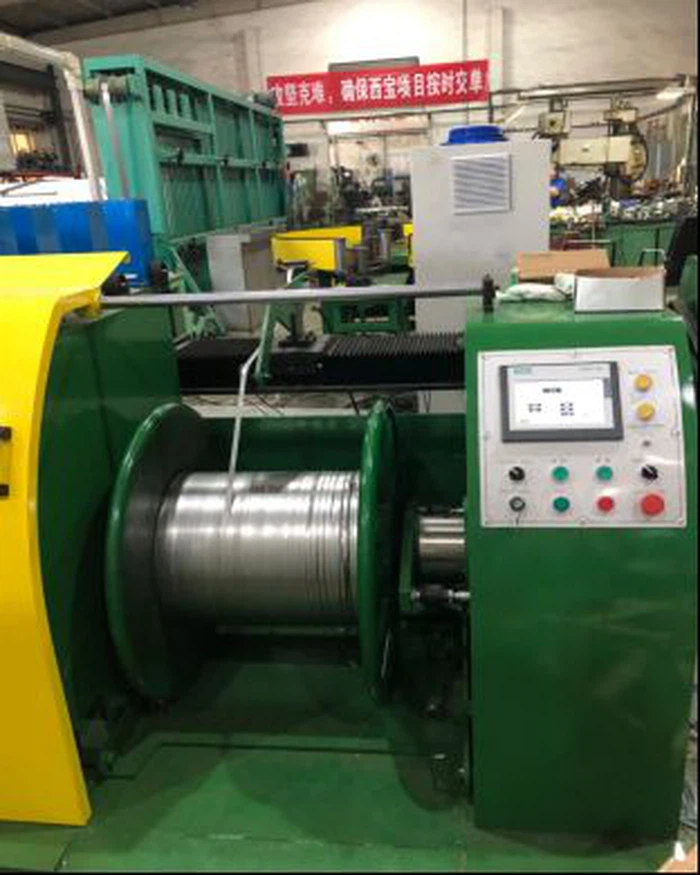

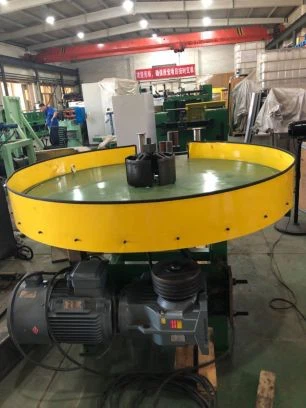

This machine consists two parts: upper picture is strip pay-off, lower picture is strip winding machine

• Max winding speed：≤200m/min
• Strip size：(according to customer)
• Winding bobbin size: Φ800×Φ600×400mm (or according to customer) outside dia * inner dia. * width
• Power:15kw
• winding strip weight≤800kg (design for special requirement)
• Payoff method：single plate pay-off
• Pay-off control: adopt non-control passive drag damp pay-off system
• Electricity: according to customer
• Motor method: inverter stepless speed regulation, wire pay-off with mechanical adjusting damp and pneumatic brake before wire inlet.
• Control method: electrical control system with emergency stop installation when strip breaking and meters installation (with electrical parameters)
• Strip take-up with bobbin pneumatic lifting installation
• Machine outside size: 1.25m(L) ×0.98m(H) ×1.28(W)
• Working area: 8.4m(L) ×2.2m(W)
