Three Water Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of barrel packaging equipment in China. We warmly welcome you to buy high-grade machinery for sale here from our factory. If you have any enquiry about quotation, please feel free to email us.

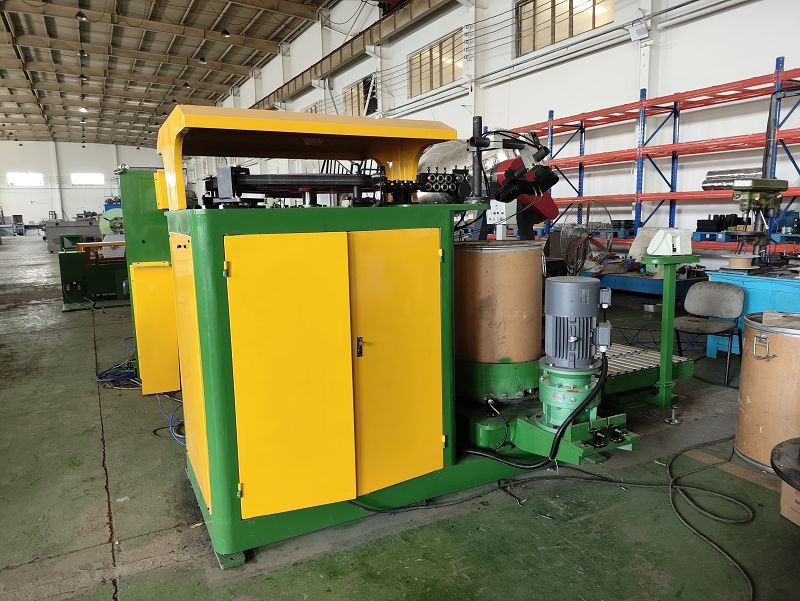

Machine Composition
1, Active pay-off machine-bobbin size (Φ 800 x 600 x 450)
2, Tension adjustment device
3, Drum packaging machine
Technical parameter
①. Maximum mechanical coiling speed: ＜2m/sec
②. Wire winding diameter: 2.0mm ～4.0mm
③. Max winding weight of each spool: 250kg
④. Upon request to be possible to achieve up to: 350kg/drum

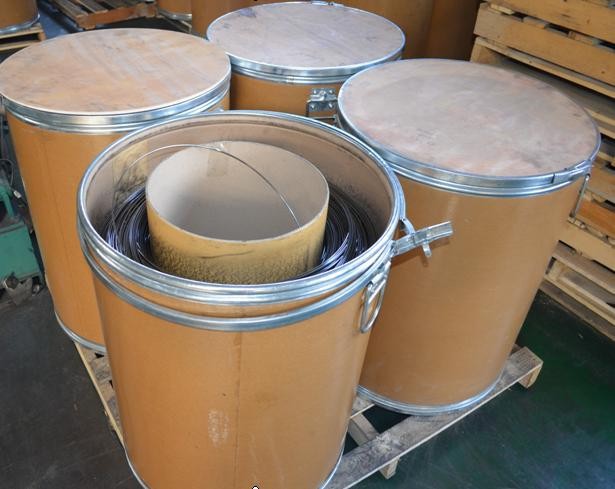

⑤. Max. drum diameter and each spool winding weight:
Φ500×Φ300× 805 250kg
Φ660×Φ440× 760 350kg
⑥. Drum height: 1000mm - 1350mm
⑦. Speed up/speed down: 2m/s
⑧. Installed power: 21.5kw
⑨. Power supply power frequency:380V 60Hz 3phases
⑩. Air pressure control system: 0.4Mpa
⑪. This equipment is suitable for the qualified solid wire, flux cored wire
⑫. Related electric appliance control: Use AC servo motor drive
⑵. Active De-coiling machine technical parameter:
①. Bobbin size: Ф800mm
②. Power:15kw
③. inverter duty ac motors
④. Dimensions: 2950 × 1050 × 2050mm
⑤. Weight: around 2000kg
