Barrel Packaging Equipment Manufacturers
Three Water Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of barrel packaging equipment manufacturers in China. We warmly welcome you to buy high-grade machinery for sale here from our factory. If you have any enquiry about quotation, please feel free to email us.
Three Water Machinery Co., Ltd. is a professional and experienced manufacturer and supplier of barrel packaging equipment in China. We provide high-quality machinery and welcome global customers to purchase. For quotation and other enquiries, please feel free to email us; our team will reply within 24 hours.
Main Technical Parameters & Machine Composition

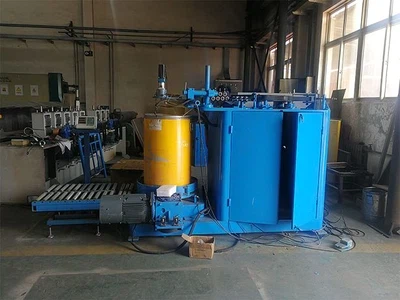

Our barrel packaging equipment is an integrated automatic set, composed of 3 core parts, featuring simple operation and high automation.
Machine Composition & Functions
Active Pay-off Machine: Core feeding part, with standard bobbin size Φ 800 x 600 x 450, compatible with common bobbins and customizable.
Tension Adjustment Device: Matches the pay-off machine for stepless tension adjustment, ensuring stable winding quality.
Drum Packaging Machine: Core winding part, realizing automatic winding, speed regulation and stop, with neat and compact winding.
Detailed Technical Parameters
2.1 Main Drum Packaging Machine Technical Parameters
① Maximum coiling speed: ＜2m/sec (adjustable)
② Wire diameter: 2.0mm ～4.0mm (for solid wire, flux cored wire)
③ Standard max winding weight: 250kg; customizable up to 350kg/drum
⑤ Standard drum specs: Φ500×Φ300×805 (250kg); Φ660×Φ440×760 (350kg) (customizable)
⑥ Drum height: 1000mm - 1350mm (adjustable)
⑦ Speed up/speed down: 2m/s
⑧ Installed power: 21.5kw
⑨ Power supply: 380V 60Hz 3phases (adjustable if needed)
⑩ Air pressure control: 0.4Mpa
⑫ Electric control: AC servo motor drive, with human-machine interface
2.2 Active De-coiling Machine Technical Parameters
① Bobbin size: Ф800mm (outer diameter)
② Power: 15kw
③ Motor type: Inverter duty AC motors (frequency conversion speed regulation)
④ Dimensions: 2950 × 1050 × 2050mm
⑤ Weight: Around 2000kg
The equipment is equipped with safety protection devices. We provide one-year free after-sales service (installation, commissioning, maintenance, training) to serve customers wholeheartedly.
