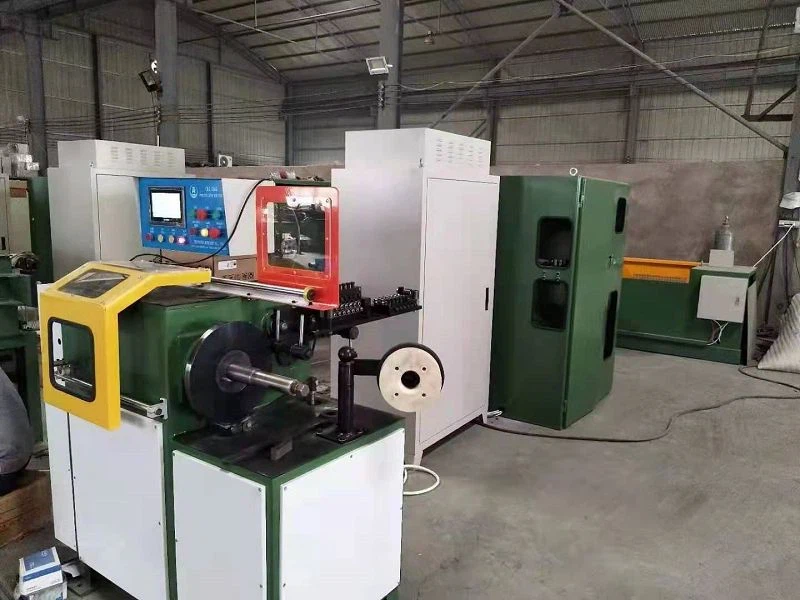

Wire Layer Winding Machine Manufacturers
Three Water Machinery Co., Ltd. is one of the most experienced manufacturers and suppliers of wire layer winding machine manufacturers in China. We warmly welcome you to buy high-grade machinery for sale here from our factory. If you have any enquiry about quotation, please feel free to email us.
Three Water Machinery Co., Ltd. is a professional and experienced manufacturer and supplier of wire layer winding machine in China. We provide high-grade machinery and perfect after-sales service. For quotation and other enquiries, please feel free to email us.
Main Technical Parameters
Power supply：3～380V, 60Hz (compatible with most regional power standards).
Air compression：≥0.5Mpa, rate of flow≥15L/ min (ensures stable operation of pneumatic components).
System control：PLC control (high precision, stable performance and easy operation).
Main machine drive mode：Frequency conversion motor (stepless speed regulation, energy-saving).
Pay-off machine drive mode：Frequency conversion motor active paying-off (synchronous with main machine, avoids wire breakage).
Wire traversing control mode：Servo motor control (high positioning accuracy, neat winding).
Design rotating speed for Main shaft: 0-2900r/m (wide speed range, flexible adjustment).
Max winding line speed: About 20m/s (high production efficiency).
Wire spec.: Φ0.8mm-1.2mm (strong applicability for common wire sizes).
Spool spec.: Φ52+0.3+0.1(inner dia.)×Φ300(outer dia.)×90.5(inner width) (precise size for stable winding).
Pay-off bobbin: Φ800 (large capacity, reduces wire replacement frequency).
Machine unit nominal power: 38kw (sufficient power, balanced efficiency and energy consumption).
